Desview R6 UHB 5.5'' 2800 cd/m² Ultra High-Brightness Touchscreen Monitor

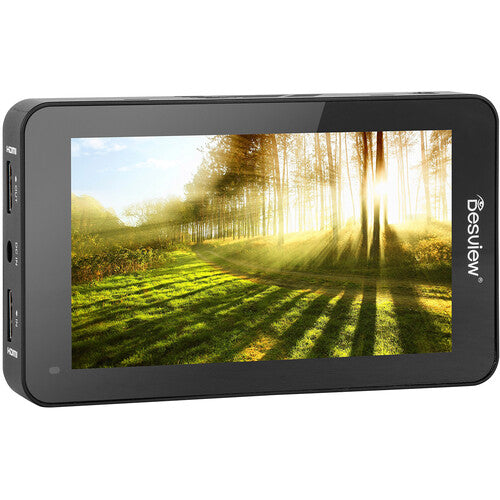

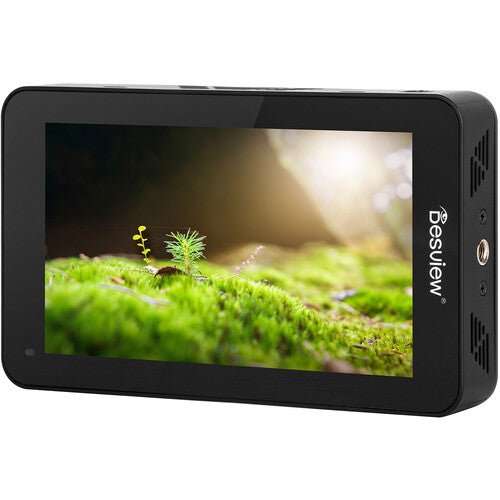

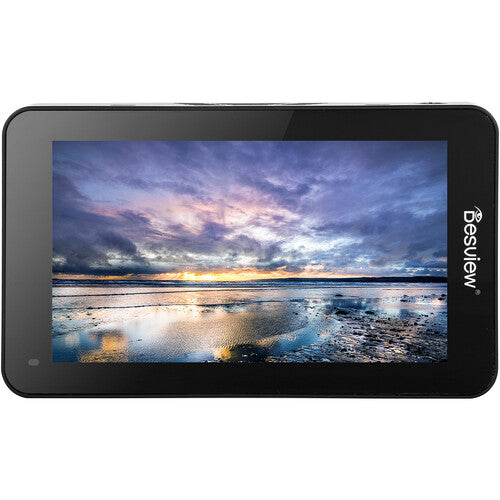

The R6 UHB 5.5'' 2800 cd/m² Ultra High-Brightness Touchscreen Monitor is a compact 5.5" on-camera touchscreen monitor with a lightweight yet durable polycarbonate and ABS plastic shell. It features an ultrabright 1920 x 1080 display with a 1000:1 contrast ratio suitable for use in exteriors without a sun hood, and a built-in sensor allows you to let the monitor adjust the screen brightness automatically. The monitor supports DCI 4K24 and 4K30 UHD through its HDMI input, scaling the signal for display, and the loop-through HDMI output allows you to send the original unmodified camera signal downstream to other monitors or connect to a wireless transmitter for easier transmission.

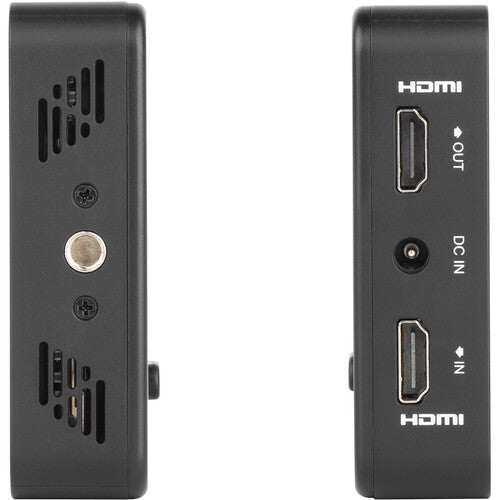

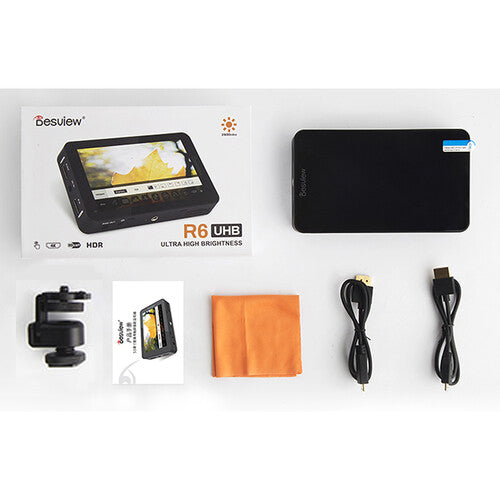

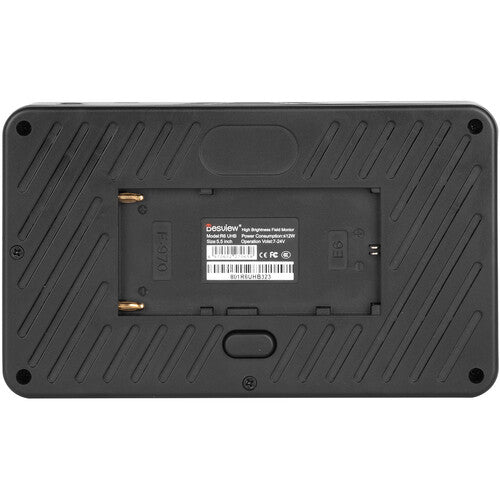

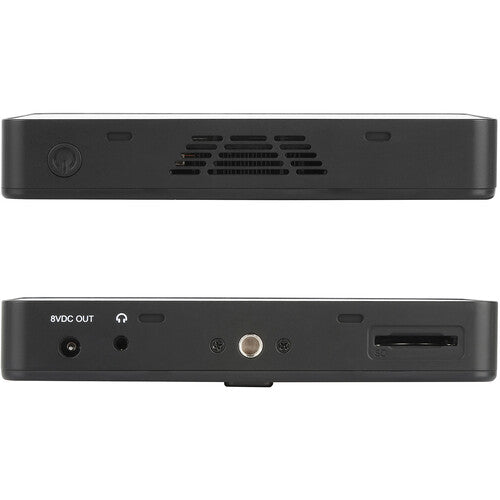

The R6 UHB allows you to import up to 3D LUTs via an SD card slot, and the monitor supports SDR and HDR viewing, including HLG and PQ. Built-in signal and camera tools include histogram, false color, peaking, zebra, and more. Display functions are easily accessed by the touchscreen and include image freeze, L/R flip, aspect ratio adjustment, and anamorphic de-squeeze selection. The monitor features a headphone jack, and a built-in fan draws air in from the sides and back of the monitor, expelling out of the top. Two 1/4"-20 mounting holes are provided, on the bottom and right side, allowing for horizontal and vertical mount. A shoe mount adapter is included for attaching the monitor to your camera's hot shoe or a cage with a shoe mount. The monitor has a combination L-series/LP-E6 battery plate and a 7-24 VDC power input port, as well as an 8 VDC power output port.

• Full HD 1080p Touchscreen Display
• DCI 4K24/UHD 4K30 HDMI Input & Output
• 3D LUT Import via SD Card Slot
• Waveform, Zebra, Audio Meters & More
• Multiple Anamorphic Ratio Display Modes
• Combo L-Series & LP-E6 Battery Plate
• Headphone Jack
• Built-In Cooling Fan
• Shoe Mount Included
• 7 to 24V Input & 8V Output Power Port
