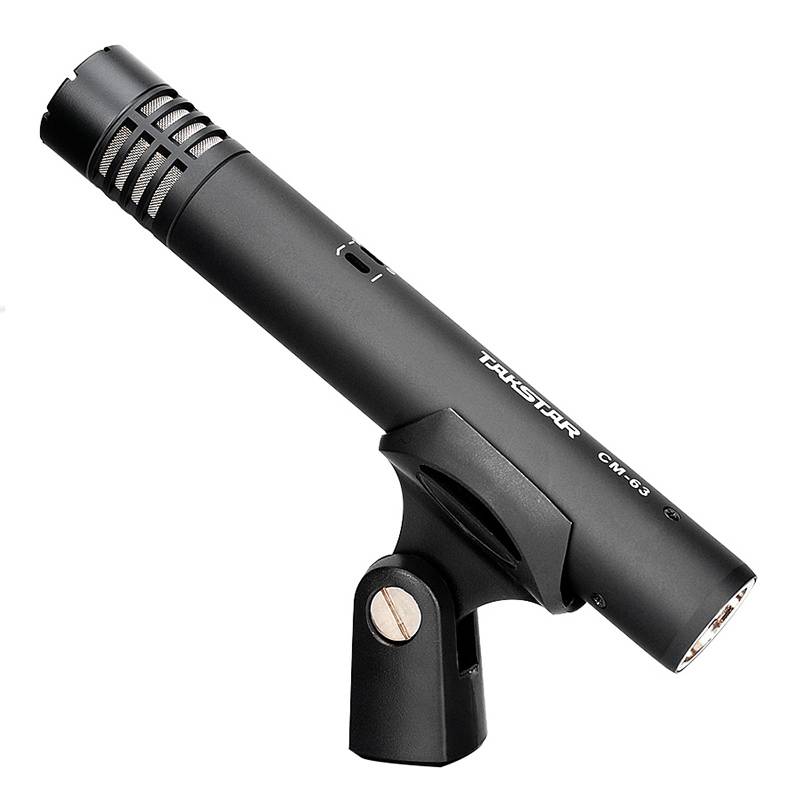

Takstar CM-63 Small Diaphragm Microphone for Audio Sound Studio Production CM63
Takstar CM-63 Small Diaphragm Microphone for Audio Sound Studio Production CM63
Regular price
₱1,590
Regular price
₱1,590
Sale price
₱1,590
Unit price
per
Couldn't load pickup availability
SECURED SSL CHECKOUT GUARANTEED
- Innovative anti-humidity technology for best performance under stringent climate environment
- Gold-plated diaphragm capsule assuring excellent transient response, wide frequency response range, high sensitivity, and accurate sound reproduction
- Built-in low noise FET for low noise and steady performance
- Optional 10dB attenuation for handling extremely high volume
- Hi-Fi OTL preamplifier featuring quality linear amplification and low distortion
- Low output impedance for minimizing power waste under long distance connection
- Multiple surface treatments guarantee long life durability.
- SPECIFICATIONS:
- Transducer Principle: True Condenser  Directivity Characteristic: Cardioid  Frequency Response: 20Hz-20kHz  Sensitivity: -35dB±2dB (0dB=1V/Pa at 1kHz)  Output Impedance: 200?±30% (at 1kHz)  Load Impedance: ?1000?  Equivalent Noise Level: ?20dB A (IEC 581-5)  Max. Input SPL: 130dB (THD ?1.0? at 1kHz) 140dB (with 10dB pad)  Bass Filter: 10dB/octave at 100Hz  Power Requirements: 48V DC Phantom Power  Body Dimensions: Ã22 x 145mm  Net Weight: 165g
Delivery Options:
→ Pickup available at: Block 46, Lot 31 Capitoline Hills Street, BF Resort Dr, Village, Las Piñas, 1740 Metro Manila
→ We ship nationwide.
Need any assistance?
Chat with our experts here or message us on our Facebook page.
Learn more about:
Takstar CM-63 Small Diaphragm Microphone for Audio Sound Studio Production CM63
Product Description
Tech Specification
Overview
- Innovative anti-humidity technology for best performance under stringent climate environment
- Gold-plated diaphragm capsule assuring excellent transient response, wide frequency response range, high sensitivity, and accurate sound reproduction
- Built-in low noise FET for low noise and steady performance
- Optional 10dB attenuation for handling extremely high volume
- Hi-Fi OTL preamplifier featuring quality linear amplification and low distortion
- Low output impedance for minimizing power waste under long distance connection
- Multiple surface treatments guarantee long life durability.
- SPECIFICATIONS:
- Transducer Principle: True Condenser  Directivity Characteristic: Cardioid  Frequency Response: 20Hz-20kHz  Sensitivity: -35dB±2dB (0dB=1V/Pa at 1kHz)  Output Impedance: 200?±30% (at 1kHz)  Load Impedance: ?1000?  Equivalent Noise Level: ?20dB A (IEC 581-5)  Max. Input SPL: 130dB (THD ?1.0? at 1kHz) 140dB (with 10dB pad)  Bass Filter: 10dB/octave at 100Hz  Power Requirements: 48V DC Phantom Power  Body Dimensions: Ã22 x 145mm  Net Weight: 165g
