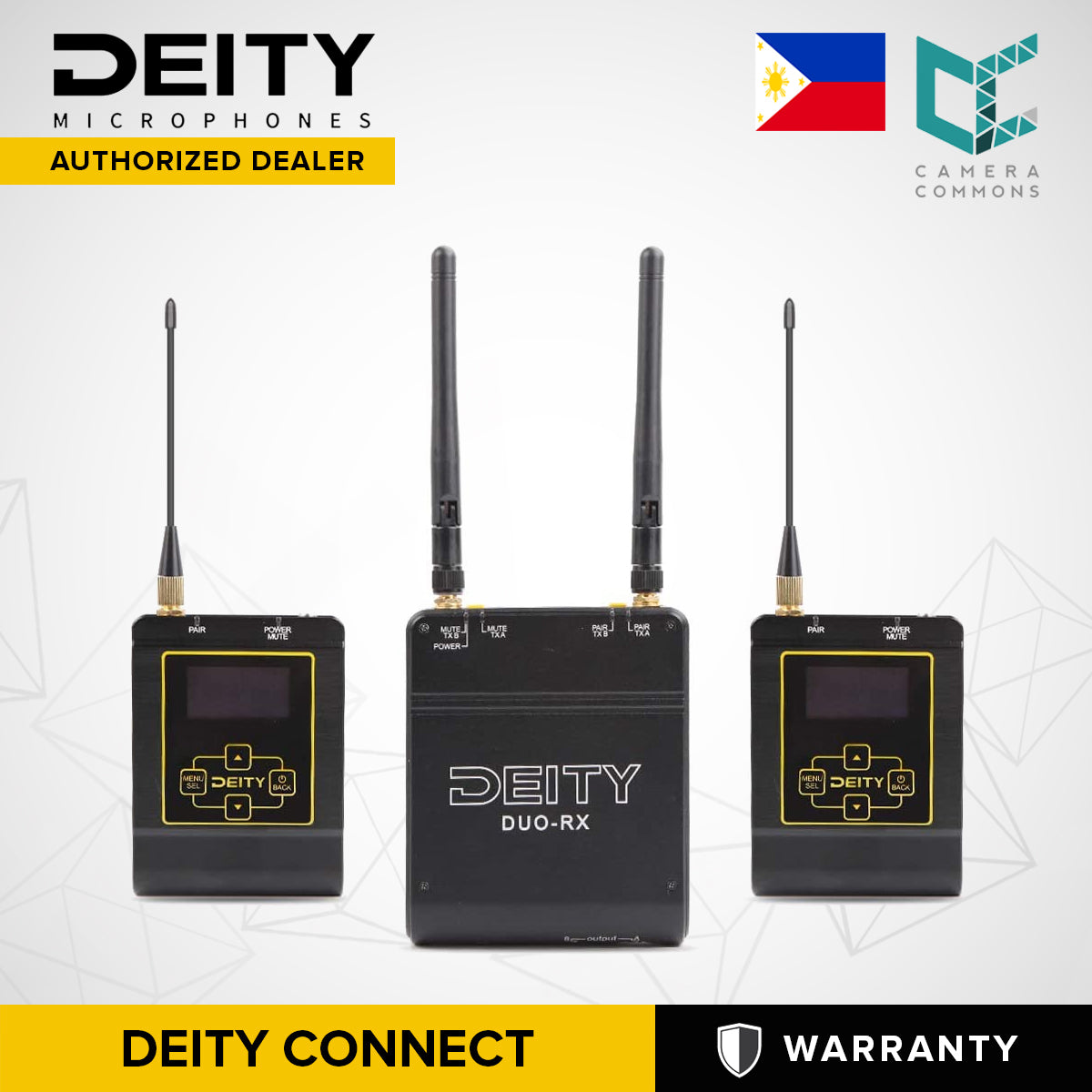

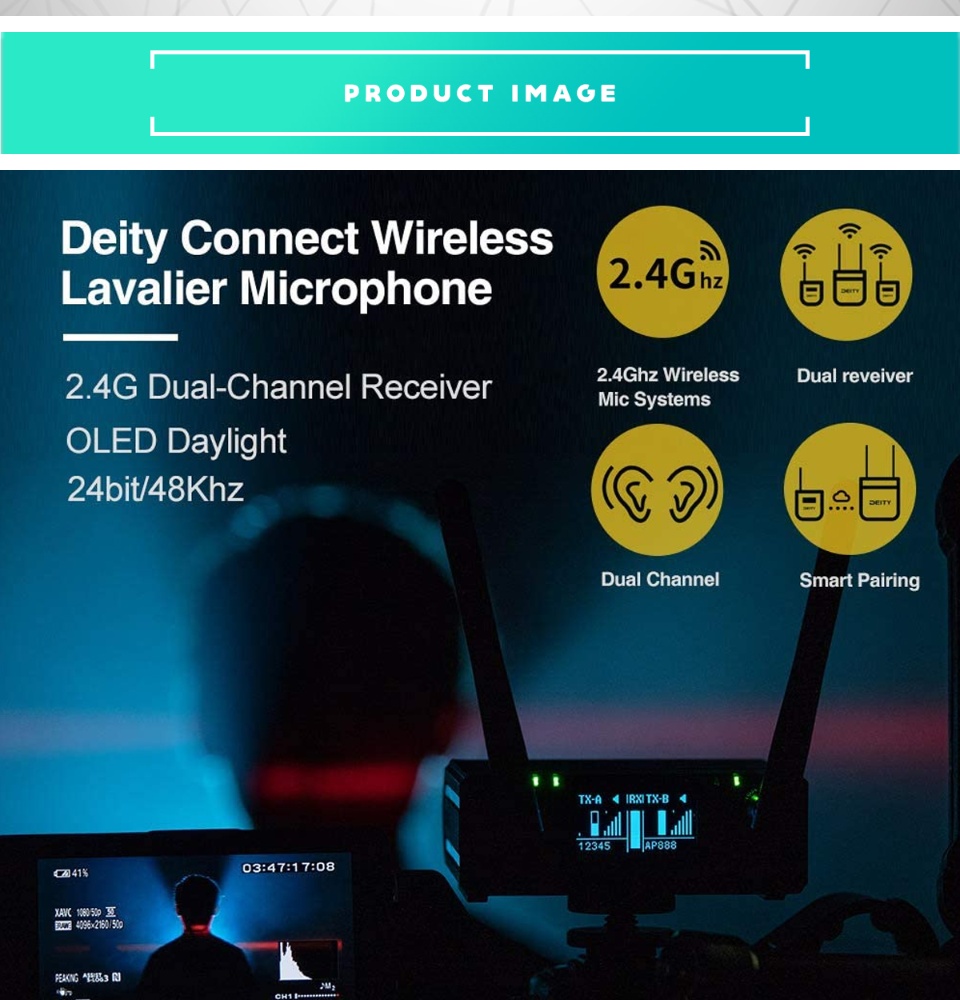

Deity Microphones Deity Connect Dual-Channel True Diversity Wireless System (2.4 GHz)
Product Description
Leave the UHF band behind and break into pro-level 2.4 GHz operation with the sound bag-ready Deity Microphones Deity Connect, a dual-channel, true diversity wireless system offering a host of high-end features and everything you need to produce broadcast-quality sound for your next film shoot, television project, or video production gig. Whether you're tasked with electronic news gathering, recording interviews, or capturing speeches at conferences, the Deity Connect empowers you with the advanced technology, rugged durability, and extensive customization requisite for dependable, high-grade results.
Knowing that a strong and solid audio link is crucial for professional results, the Deity Connect was designed as a bidirectional transceiver system with adaptive frequency hopping, "Listen-Before-Talk" stream repair, and encrypted, uncompressed digital signal integrity. The receiver sports four antennas—two internal dipole horizontal antennas, and two external elbow antennas—to allow versatile positioning and deliver uninterrupted signal reception. Through its OLED screen and straightforward buttons, the receiver provides comprehensive remote control of each transmitter; no more walking over to your subject to adjust transmitter settings! There are two gain-adjustable 3.5mm TRS outputs, which can be utilized in any of the three output modes—Balanced XLR mode sends a separate audio channel as a balanced signal to each output jack, DSLR Blended mode mixes both audio channels to one output and turns the other jack into a headphone output, while Stereo mode routes a stereo feed from each transmitter to separate outputs.In addition to having the same OLED screen and user-friendly menu navigation as the receiver, the transmitters grant thorough control of your signal quality via automatic or manual RF power adjustment, switchable analog limiters, low-cut filters, and high-frequency boosts; tame peaks, reduce rumble, enhance clarity, and more! The locking 3.5mm TRS input jack on each transmitter conforms to the Sennheiser-standard pin configuration, and can be set to accept a mono mic signal or a stereo line-level source for camera hopping. The transmitters and receiver boast 10 hours of operating time at 100mW (more time at lower mW settings) via internal lithium batteries, which recharge in about an hour via USB Type-C connections. If you want efficiency and versatility without sacrificing quality, make the Deity Connect your wireless audio solution.
- Bag-Ready, Dual True Diversity System
- Dual-Channel Receiver & Two Transmitters
- 24bit/48Khz Uncompressed Audio
- SMA Antenna Ports
- USB-C Quick Charge
- OLED Daylight Display Screens
- Input Gain Control at the TX
- Adjustable Output Levels
- Dual Outputs
- Transmitter with a Low Cut, Limiter, and High Freq Boost
- 10-Hour Battery Recharges via USB Type-C connections in 1 Hour
- Auto/Manual RF Adjustment up to 100mW
- Includes Two Lav Mics & Accessory Pack

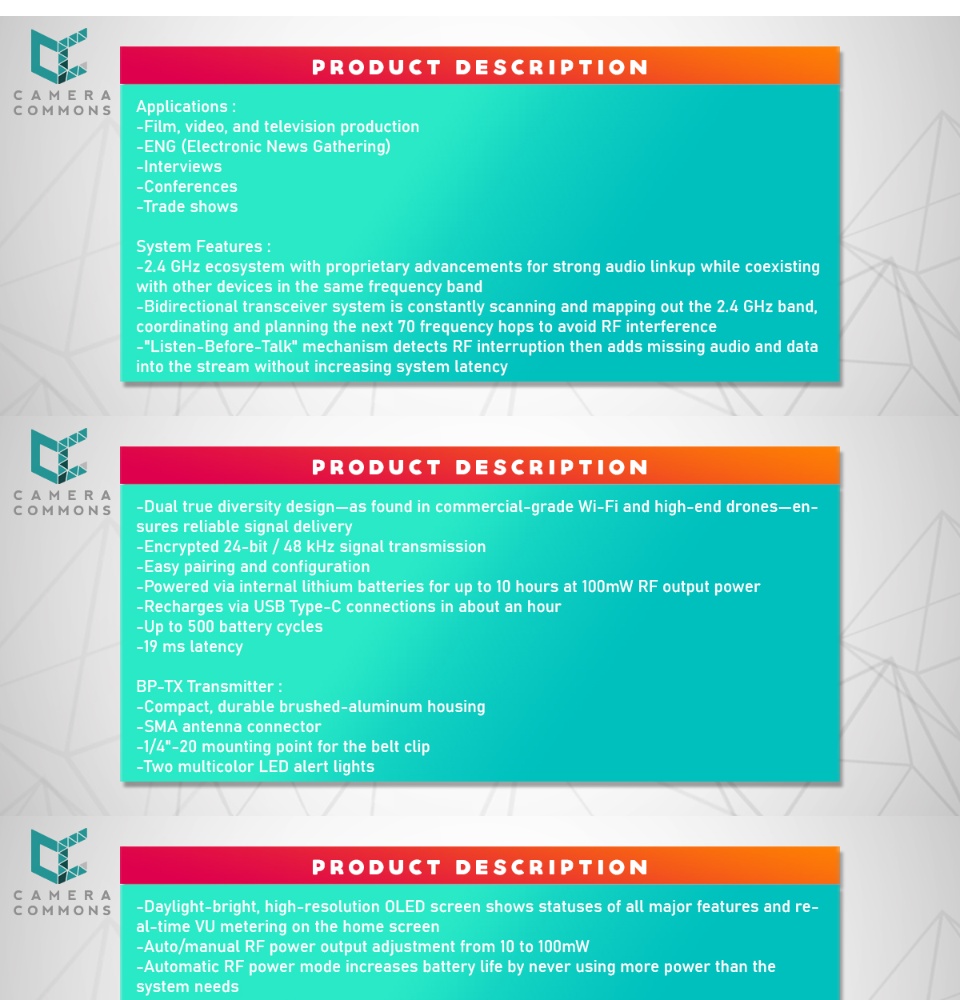

Applications
- Film, video, and television production
- ENG (Electronic News Gathering)
- Interviews
- Conferences
- Trade shows
System Features

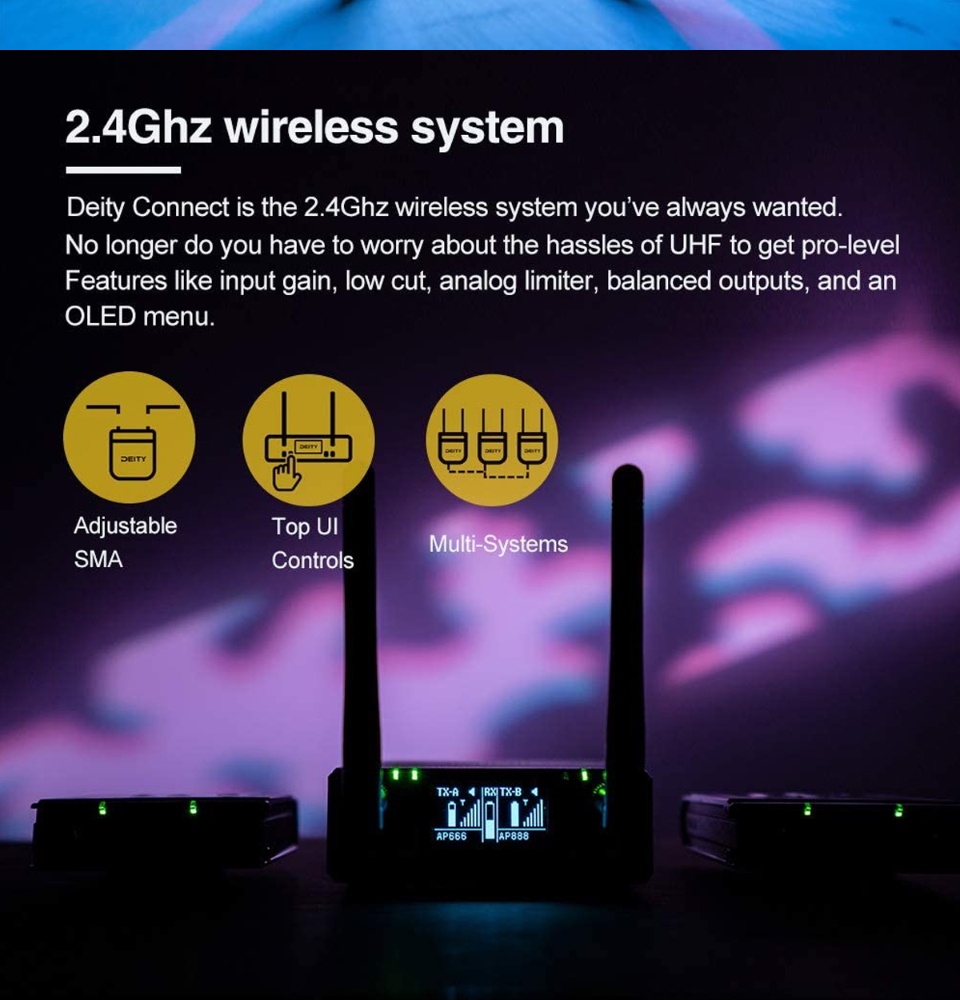

- 2.4 GHz ecosystem with proprietary advancements for strong audio linkup while coexisting with other devices in the same frequency band
- Bidirectional transceiver system is constantly scanning and mapping out the 2.4 GHz band, coordinating and planning the next 70 frequency hops to avoid RF interference
- "Listen-Before-Talk" mechanism detects RF interruption then adds missing audio and data into the stream without increasing system latency

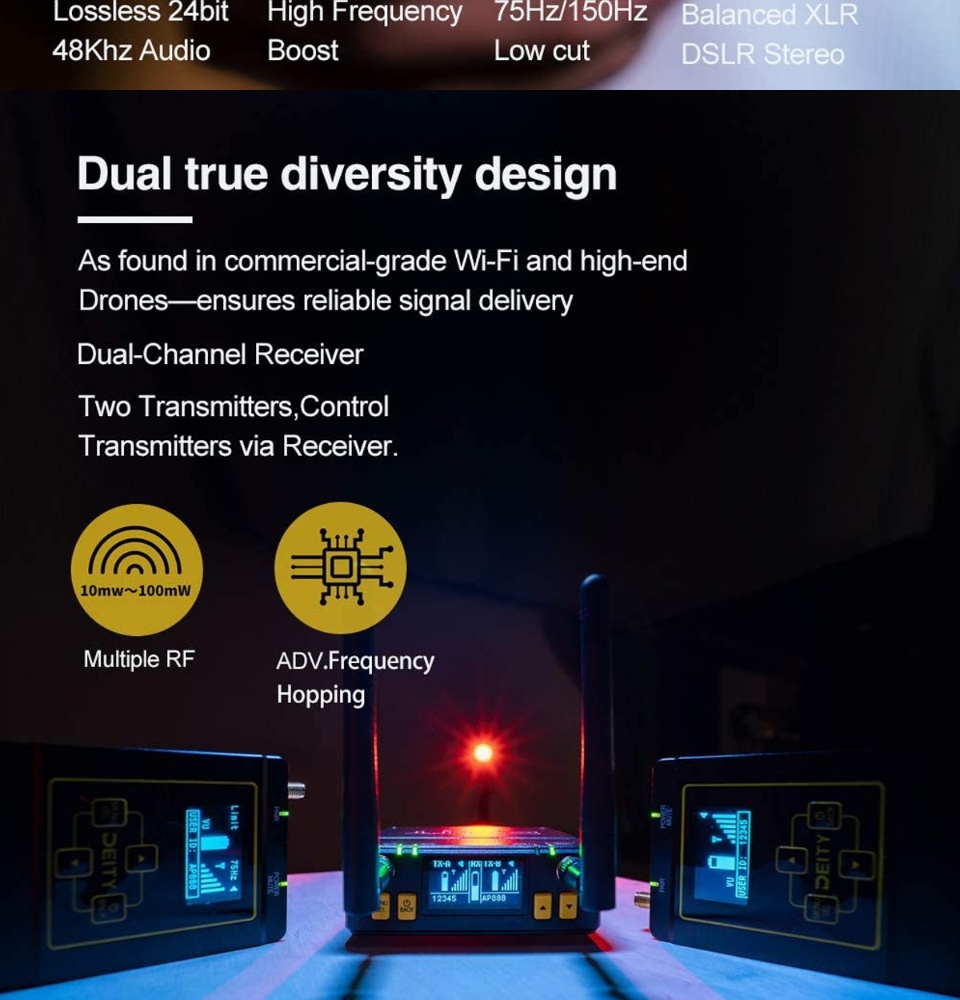

- Dual true diversity design—as found in commercial-grade Wi-Fi and high-end drones—ensures reliable signal delivery
- Encrypted 24-bit / 48 kHz signal transmission
- Easy pairing and configuration

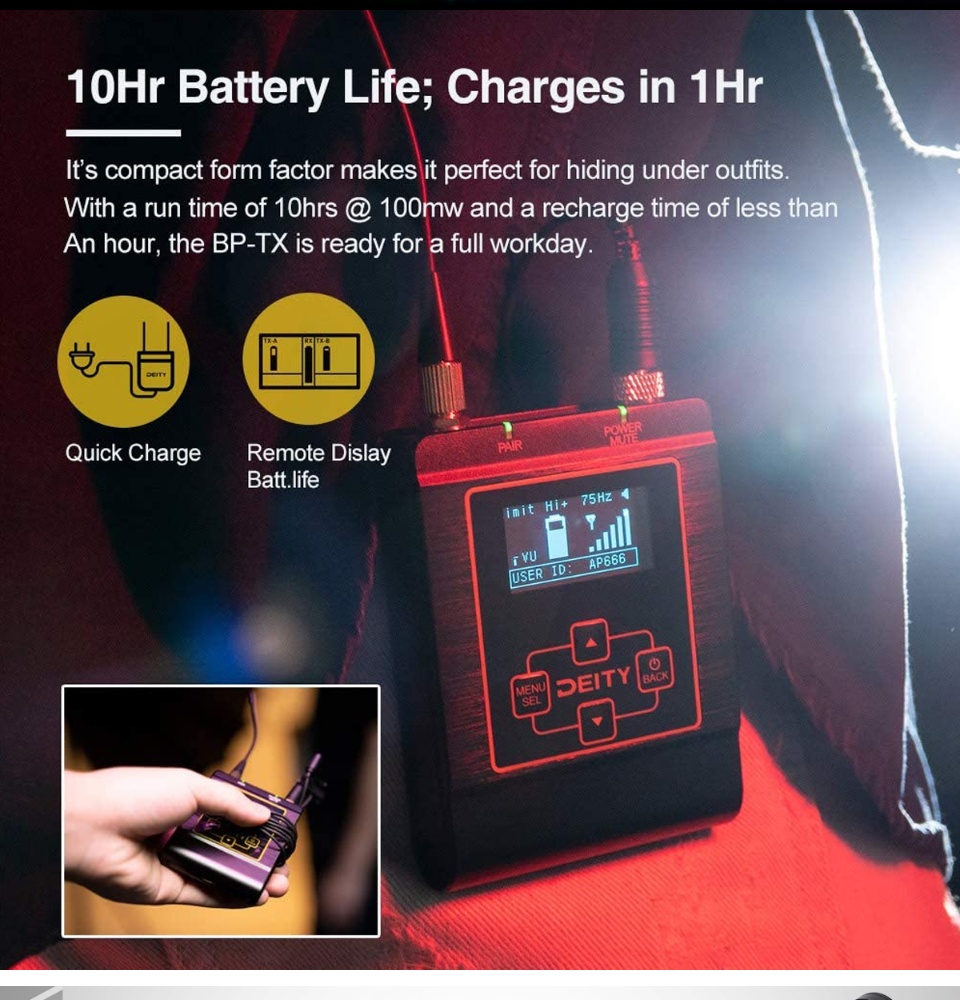

- Powered via internal lithium batteries for up to 10 hours at 100mW RF output power
- Recharges via USB Type-C connections in about an hour
- Up to 500 battery cycles
- 19 ms latency
BP-TX Transmitter
- Compact, durable brushed-aluminum housing
- SMA antenna connector
- 1/4"-20 mounting point for the belt clip
- Two multicolor LED alert lights
- Daylight-bright, high-resolution OLED screen shows statuses of all major features and real-time VU metering on the home screen
- Auto/manual RF power output adjustment from 10 to 100mW
- Automatic RF power mode increases battery life by never using more power than the system needs

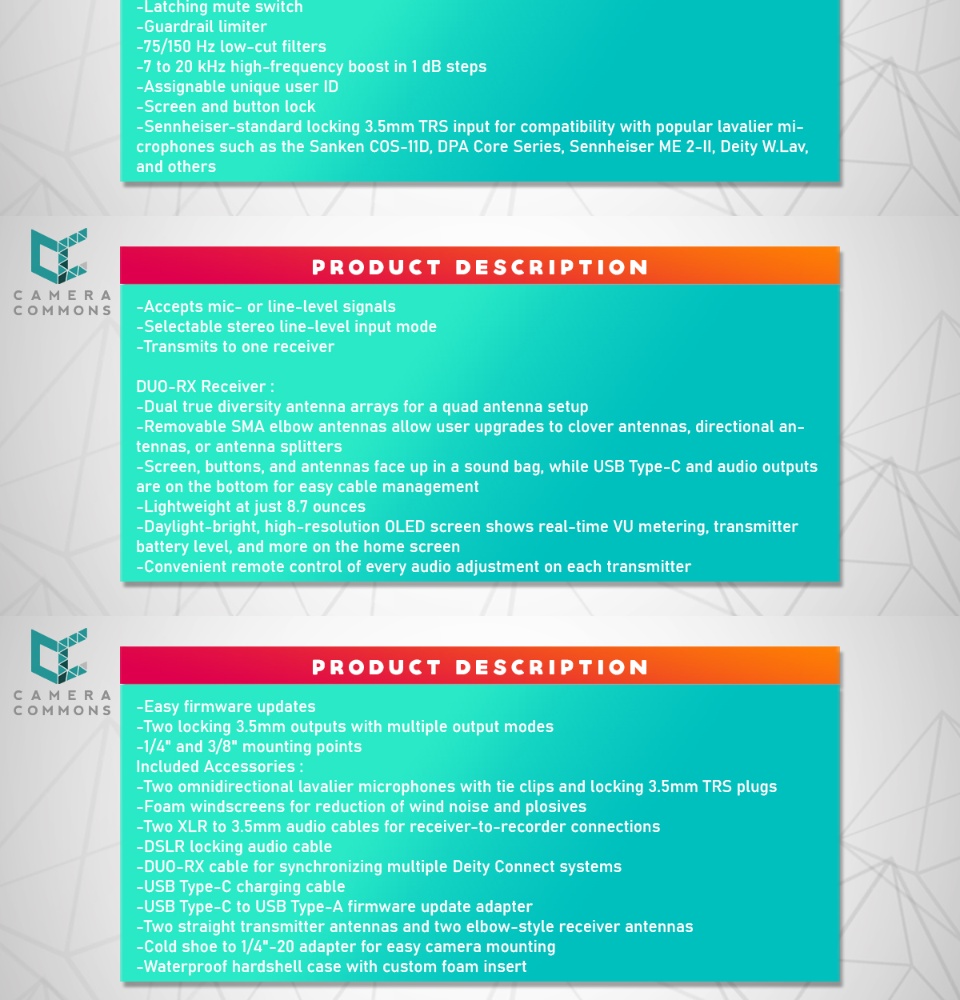

- Latching mute switch
- Guardrail limiter
- 75/150 Hz low-cut filters
- 7 to 20 kHz high-frequency boost in 1 dB steps
- Assignable unique user ID
- Screen and button lock
- Sennheiser-standard locking 3.5mm TRS input for compatibility with popular lavalier microphones such as the Sanken COS-11D, DPA Core Series, Sennheiser ME 2-II, Deity W.Lav, and others
- Accepts mic- or line-level signals
- Selectable stereo line-level input mode
- Transmits to one receiver
DUO-RX Receiver
- Dual true diversity antenna arrays for a quad antenna setup
- Removable SMA elbow antennas allow user upgrades to clover antennas, directional antennas, or antenna splitters
- Screen, buttons, and antennas face up in a sound bag, while USB Type-C and audio outputs are on the bottom for easy cable management
- Lightweight at just 8.7 ounces
- Daylight-bright, high-resolution OLED screen shows real-time VU metering, transmitter battery level, and more on the home screen
- Convenient remote control of every audio adjustment on each transmitter
- Easy firmware updates
- Two locking 3.5mm outputs with multiple output modes
- 1/4" and 3/8" mounting points
Included Accessories
- Two omnidirectional lavalier microphones with tie clips and locking 3.5mm TRS plugs
- Foam windscreens for reduction of wind noise and plosives
- Two XLR to 3.5mm audio cables for receiver-to-recorder connections
- DSLR locking audio cable
- DUO-RX cable for synchronizing multiple Deity Connect systems
- USB Type-C charging cable
- USB Type-C to USB Type-A firmware update adapter
- Two straight transmitter antennas and two elbow-style receiver antennas
- Cold shoe to 1/4"-20 adapter for easy camera mounting
- Waterproof hardshell case with custom foam insert
