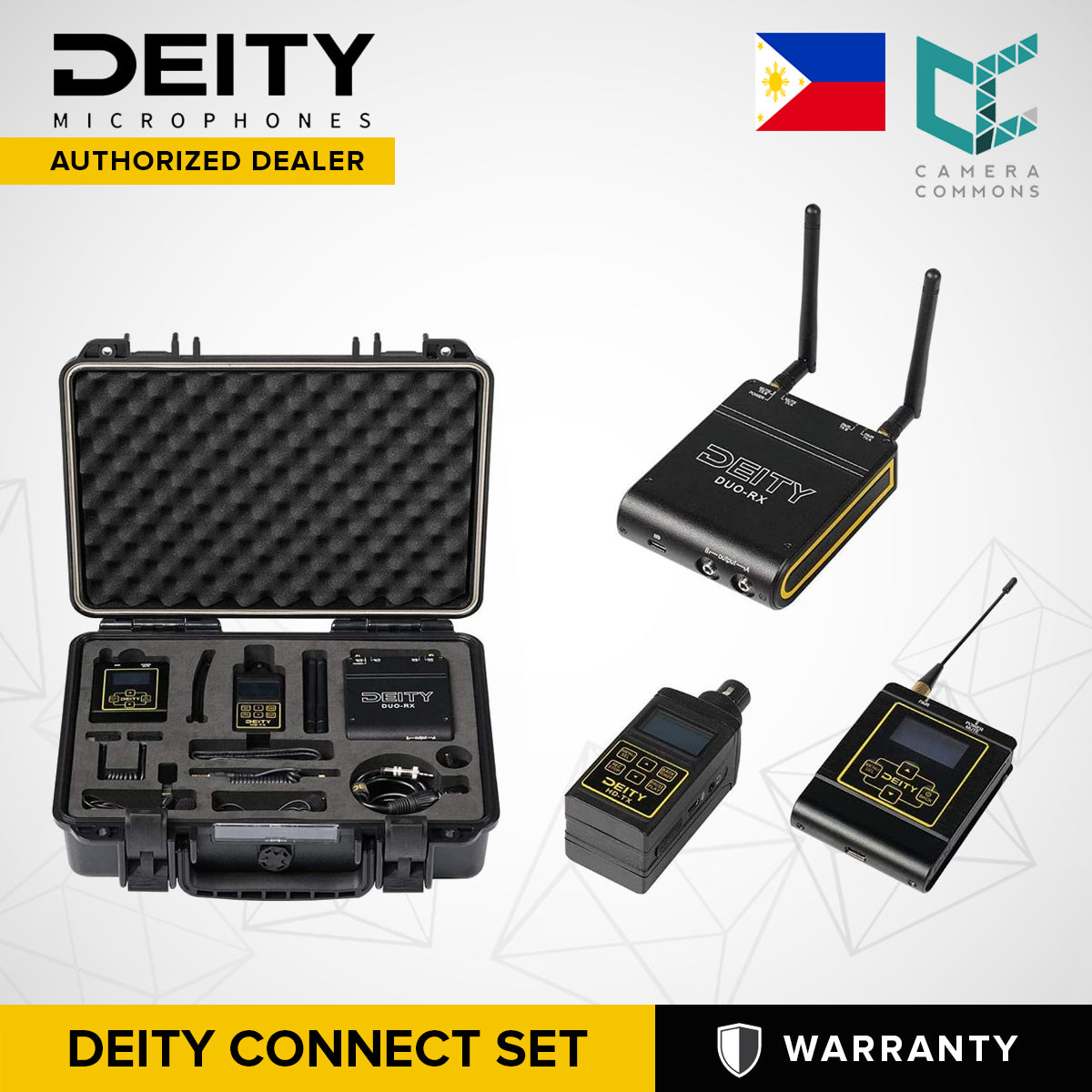

Deity Microphones Deity Connect Interview Kit 2-Person Wireless Combo Microphone System (2.4 GHz)
Product Description
- Bag-Ready System for Interviews
- Dual-Channel True Diversity Receiver
- Bodypack and Plug-On Transmitters
- 2 x Omnidirectional Lavalier Microphones
- Control Transmitters via Receiver
- 10-Hour Battery Recharges in 1 Hour
- OLED Daylight Display Screens
- Encrypted 24-Bit / 48 kHz Transmission
- Auto/Manual RF Adjustment up to 100mW
- Limiter, Low-Cut Filter & HF Boost
Leave the UHF band behind and break into pro-level 2.4 GHz operation with the sound bag-ready Deity Microphones Deity Connect Interview Kit, a dual-channel, true diversity wireless system offering a host of high-end features, bodypack and plug-on transmitters, and everything you need to produce broadcast-quality sound for your next interview or narrative shoot.
The Deity Connect Interview Kit empowers you with the advanced technology, rugged durability, and extensive customization requisite for dependable, high-grade results. Knowing that a strong and solid audio link is crucial for professional results, the Deity Connect was designed as a bidirectional transceiver system with adaptive frequency hopping, "Listen-Before-Talk" stream repair, and encrypted, uncompressed digital signal integrity.
The receiver sports four antennas—two internal dipole horizontal antennas, and two external elbow antennas—to allow versatile positioning and deliver uninterrupted signal reception. Through its OLED screen and straightforward buttons, the receiver provides comprehensive remote control of each transmitter; no more walking over to your subject to adjust transmitter settings! There are two gain-adjustable 3.5mm TRS outputs, which can be utilized in any of the three output modes—XLR mode sends a separate audio channel as a balanced signal to each output jack, DSLR mode mixes both audio channels to one output and turns the other jack into a headphone output, while Stereo mode routes a stereo feed from each transmitter to separate outputs.
In addition to having the same OLED screen and user-friendly menu navigation as the receiver, the transmitters grant thorough control of your signal quality via automatic or manual RF power adjustment, switchable analog limiters, low-cut filters, and high-frequency boosts; tame peaks, reduce rumble, enhance clarity, and more. The locking 3.5mm TRS input jack on each transmitter conforms to the Sennheiser-standard pin configuration and can be set to accept a mono mic signal or a stereo line-level source for camera hopping.
The transmitters and receiver boast 10 hours of operating time at 100mW (more time at lower mW settings) via internal lithium batteries, which recharge in about an hour via USB Type-C connections. If you want efficiency and versatility without sacrificing quality, make the Deity Connect Interview Kit your wireless audio solution.
Applications
- ENG (Electronic News Gathering)
- Interviews
- Conferences
- Trade shows
System Features
- 2.4 GHz ecosystem with proprietary advancements for strong audio linkup while coexisting with other devices in the same frequency band
- Bidirectional transceiver system is constantly scanning and mapping out the 2.4 GHz band, coordinating and planning the next 70 frequency hops to avoid RF interference
- "Listen-Before-Talk" mechanism detects RF interruption then adds missing audio and data into the stream without increasing system latency
- Dual true diversity design—as found in commercial-grade Wi-Fi and high-end drones—ensures reliable signal delivery
- Encrypted 24-bit / 48 kHz signal transmission
- Easy pairing and configuration
- Powered via internal lithium batteries for up to 10 hours at 100mW RF output power
- Recharges via USB Type-C connections in about an hour
- Up to 500 battery cycles
- 19 ms latency

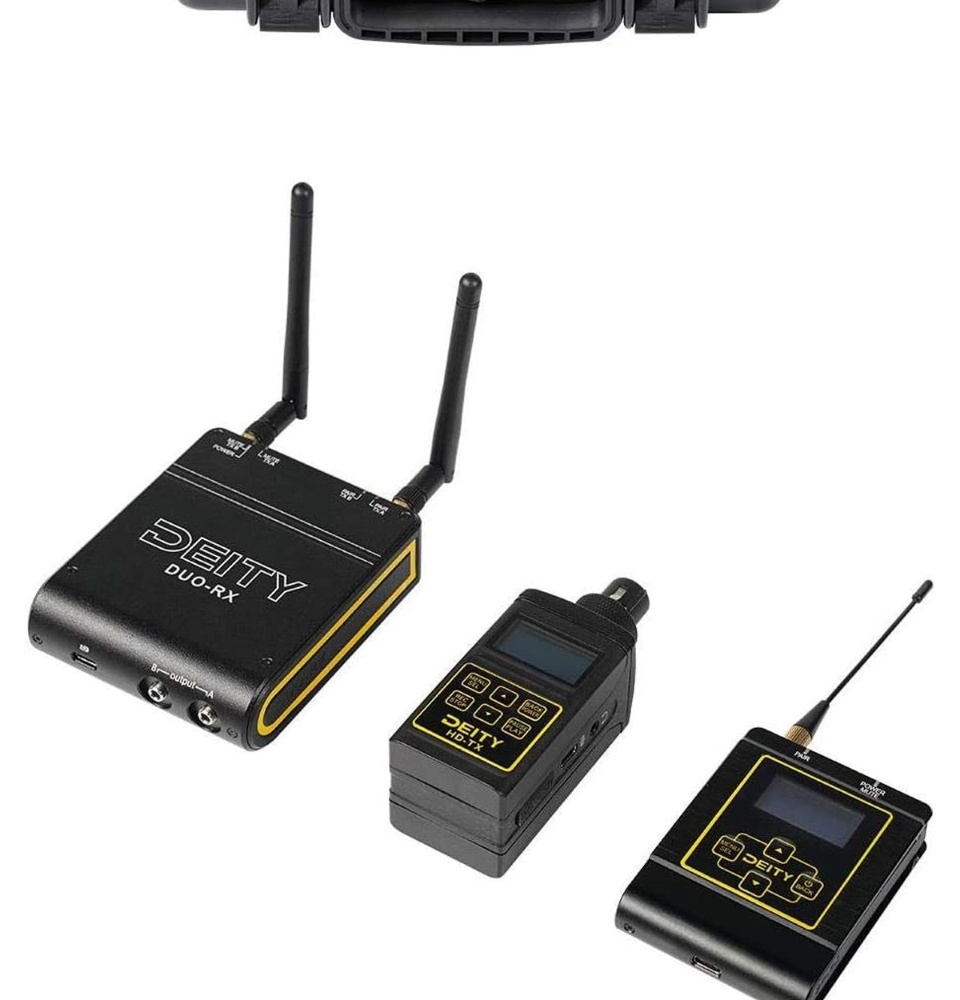

DUO-RX Receiver
- Dual true diversity antenna arrays for a quad-antenna setup
- Removable SMA elbow antennas allow user upgrades to clover antennas, directional antennas, or antenna splitters
- Screen, buttons, and antennas face up in a sound bag, while USB Type-C and audio outputs are on the bottom for easy cable management
- Lightweight at just 8.7 ounces
- Daylight-bright, high-resolution OLED screen shows real-time VU metering, transmitter battery level, and more on the home screen
- Convenient remote control of every audio adjustment on each transmitter
- Easy firmware updates
- Two locking 3.5mm outputs with multiple output modes
- 1/4" and 3/8" mounting points
BP-TX Transmitter
- Compact, durable brushed-aluminum housing
- SMA antenna connector
- 1/4"-20 mounting point for the belt clip
- Two multicolor LED alert lights
- Daylight-bright, high-resolution OLED screen shows statuses of all major features and real-time VU metering on the home screen
- Auto/manual RF power output adjustment from 10 to 100mW
- Automatic RF power mode increases battery life by never using more power than the system needs
- Latching mute switch
- Guardrail limiter
- 75/150 Hz low-cut filters
- 7 to 20 kHz high-frequency boost in 1 dB steps
- Assignable unique user ID
- Screen and button lock
- Sennheiser-standard locking 3.5mm TRS input for compatibility with popular lavalier microphones such as the Sanken COS-11D, DPA Core Series, Sennheiser ME 2-II, Deity W.Lav, and others
- Accepts mic- or line-level signals
- Selectable stereo line-level input mode
- Transmits to one receiver
HD-TX Plug-On Transmitter
- Transmits to a Deity Connect receiver or records to a microSD card (media card available separately)
- Firmware V2.0 allows USB audio interface functionality and simultaneous transmission and recording when using the XLR input and 48V phantom power
- 2.4 GHz encrypted transmission with advanced frequency hopping and bidirectional linking
- Selectable RF output power of 10 / 25 / 50 / 100mW, or automatic
- Guardrail analog limiter
- 75/150 Hz low-cut filters
- Adjustable high-frequency boost (7 to 20 kHz in +1 dB steps)
- Records 24-bit / 48 kHz WAV files
- Balanced 3-pin XLR input with 48V phantom power
- Locking 3.5mm TRS mic/line input with 3V plug-in power
- 1.3" OLED display
- Selectable screen and button lock (manual or automatic)
- Up to 10 hours of battery life at 100mW RF power
- Recharges via USB Type-C connection (charging cable included)
- 90-minute recharge time via USB QuickCharge 2.0 / 3.0
- Approximately eight hours of recording time via an 8GB microSD card (available separately)
- 3.5mm headphone jack for real-time monitoring or listening to playback
- Firmware updatable
- Includes holster with belt clip

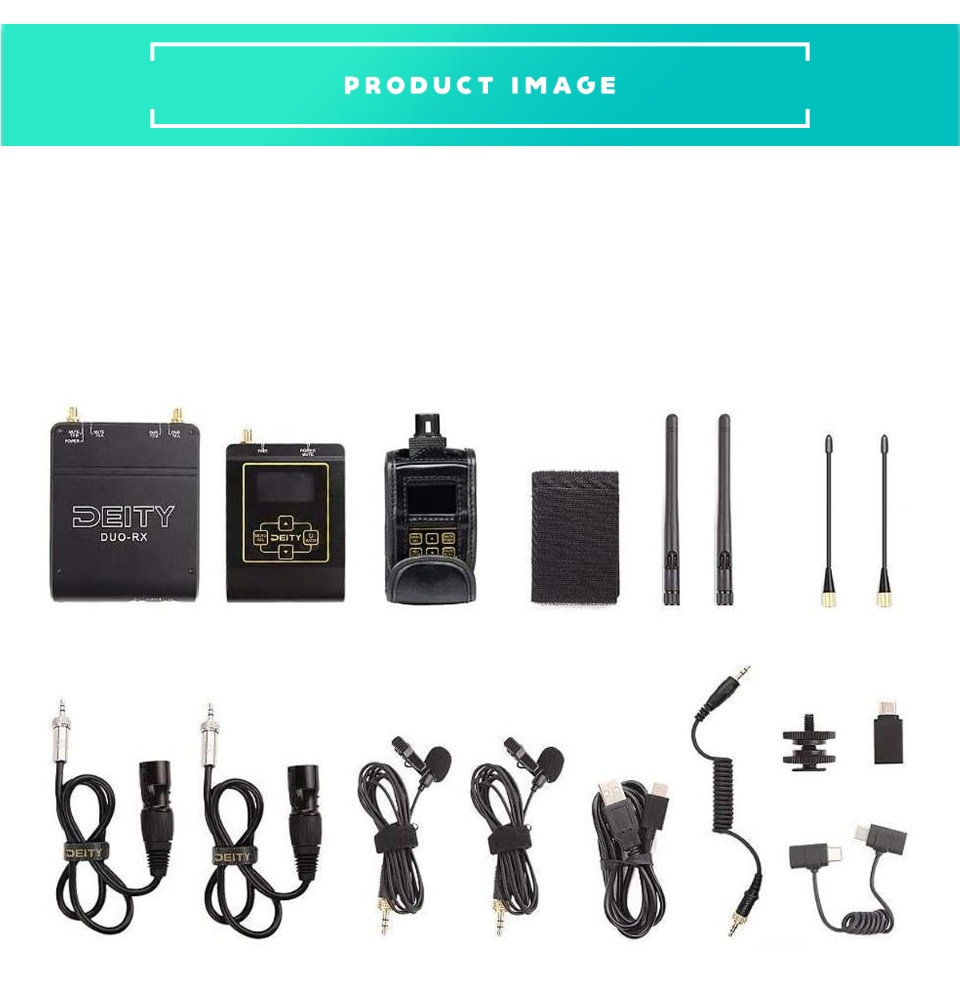

Included Accessories
- Two omnidirectional lavalier microphones with tie clips and locking 3.5mm TRS plugs
- Foam windscreens for reduction of wind noise and plosives
- Two XLR to 3.5mm audio cables for receiver-to-recorder connections
- DSLR locking audio cable
- DUO-RX cable for synchronizing a second Deity Connect system (available separately)
- USB Type-C charging cable
- USB Type-C to USB Type-A firmware update adapter
- One straight transmitter antenna and two elbow-style receiver antennas
- Cold shoe to 1/4"-20 adapter for easy camera mounting

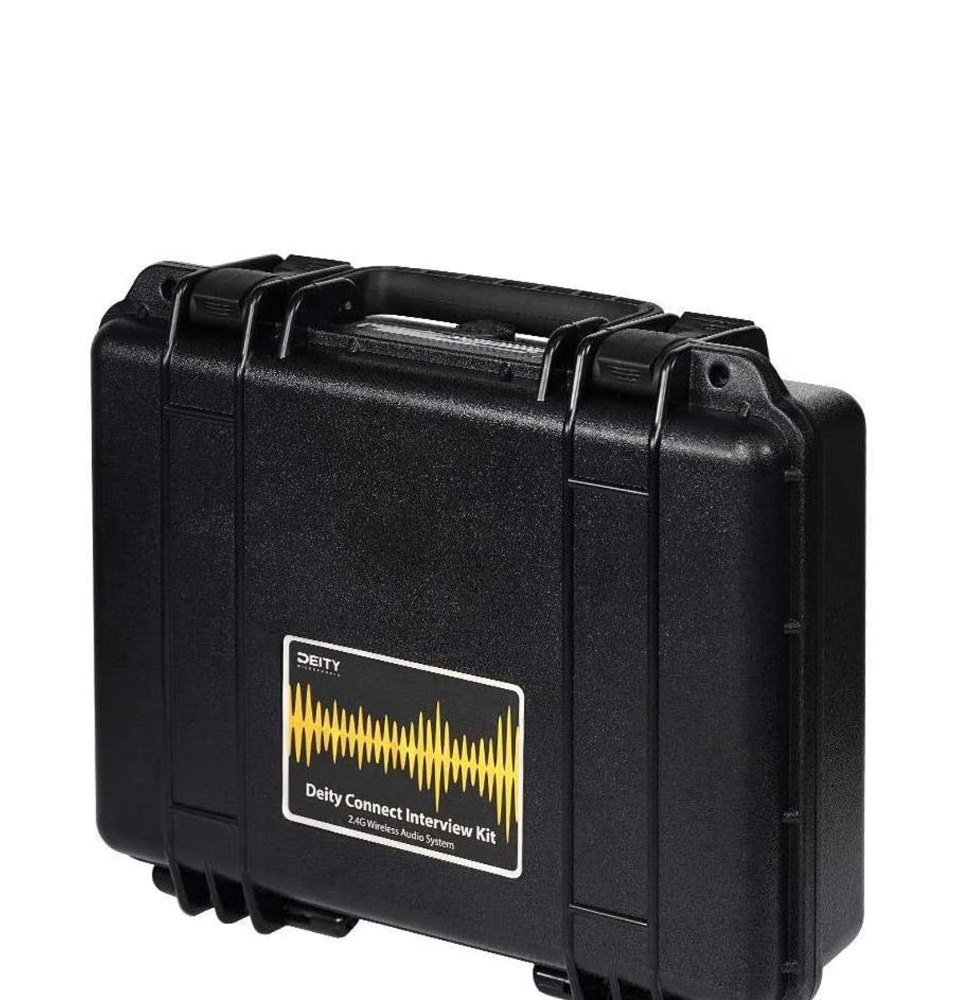

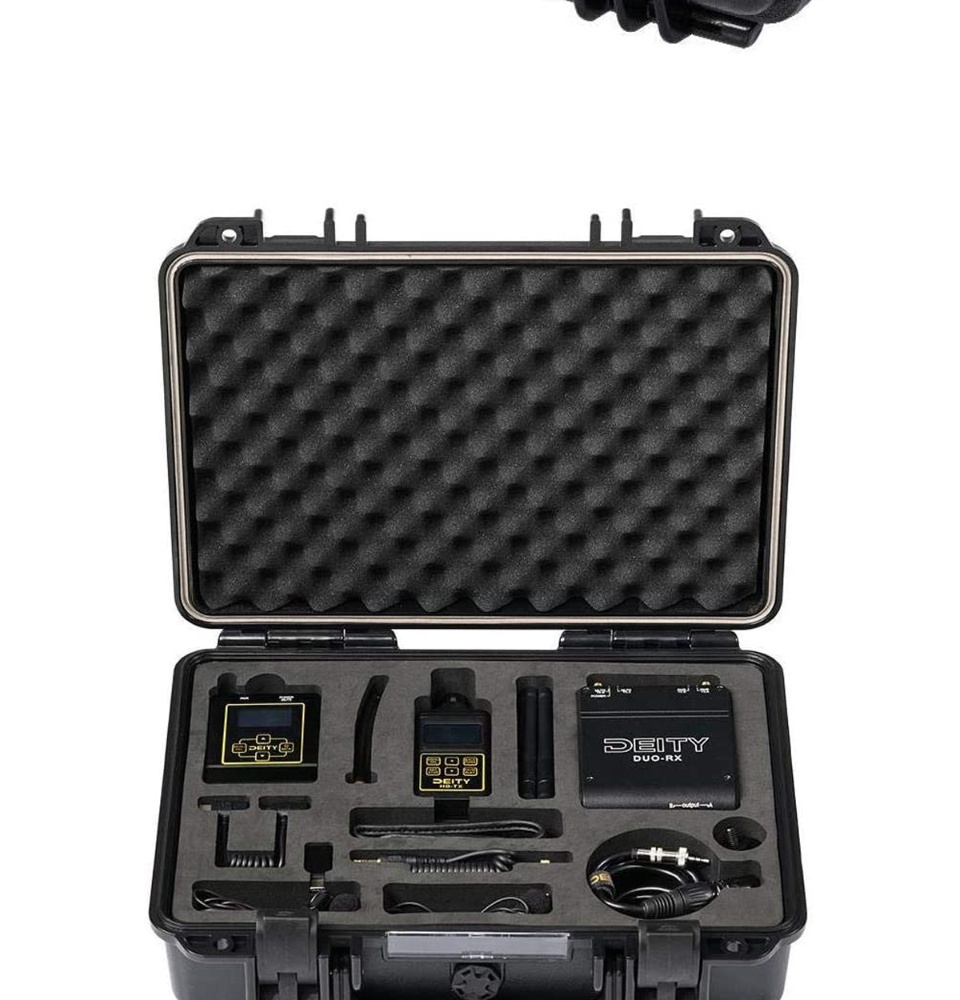

- Waterproof hardshell case with custom foam insert
